PL1400

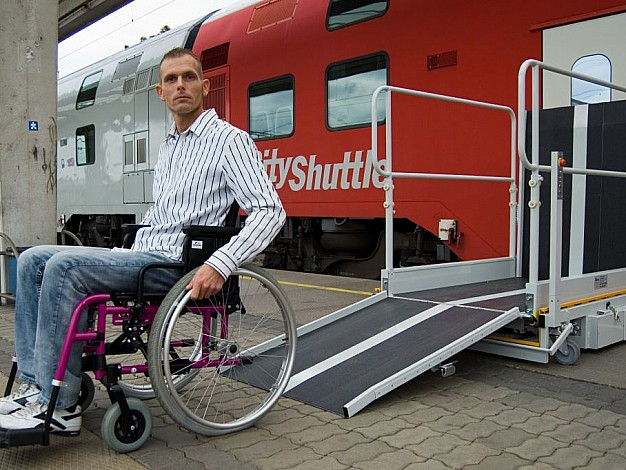

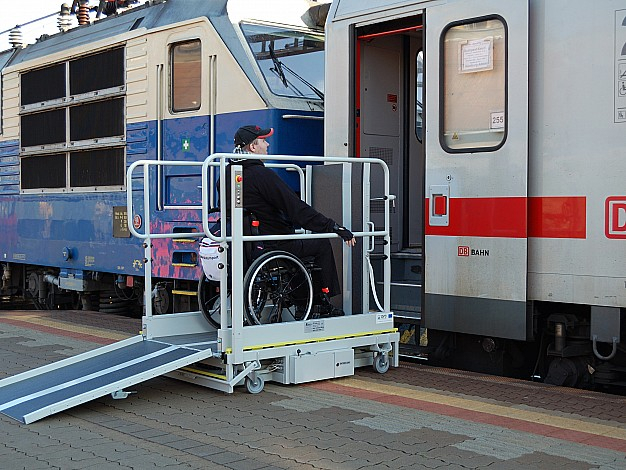

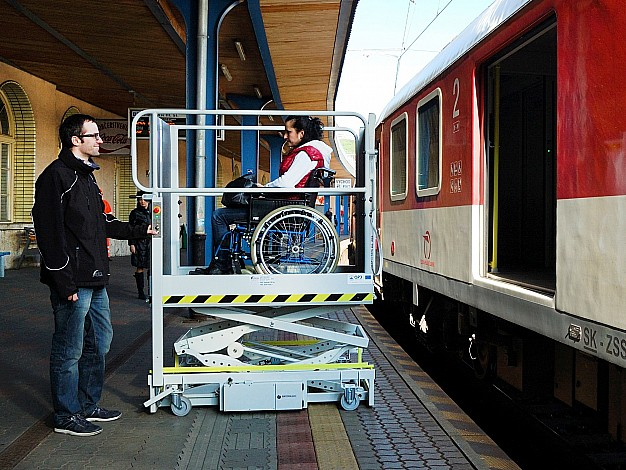

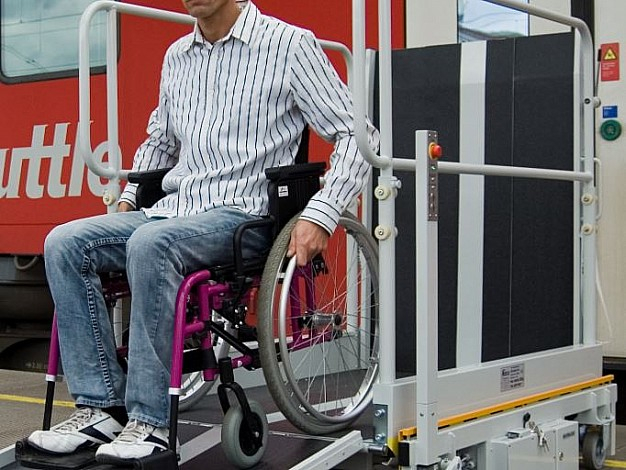

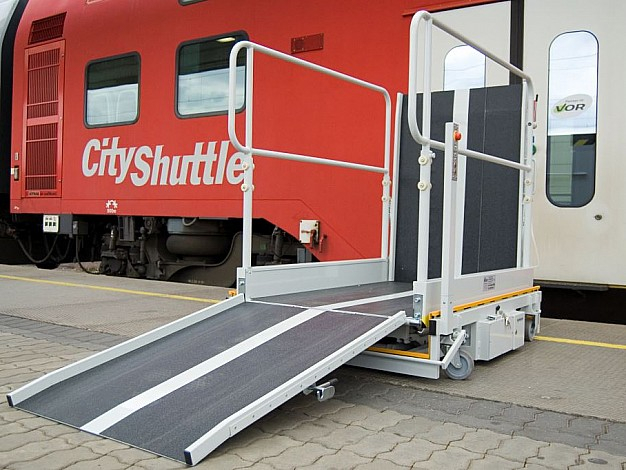

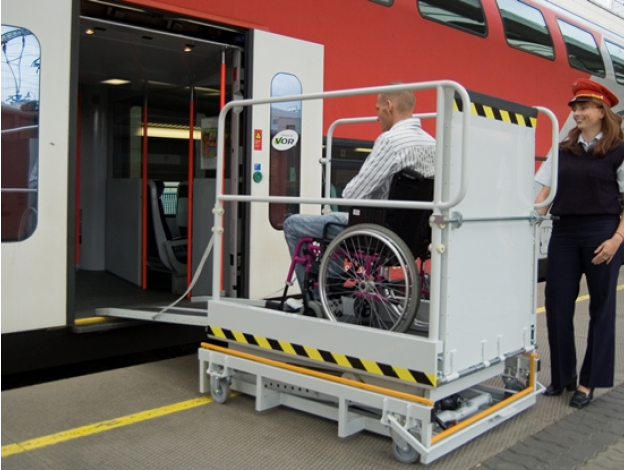

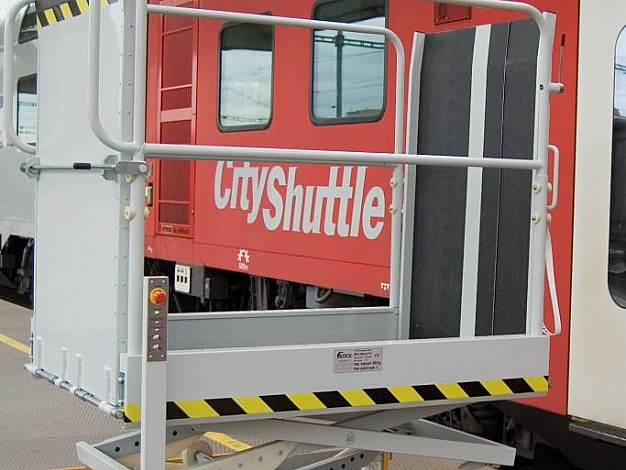

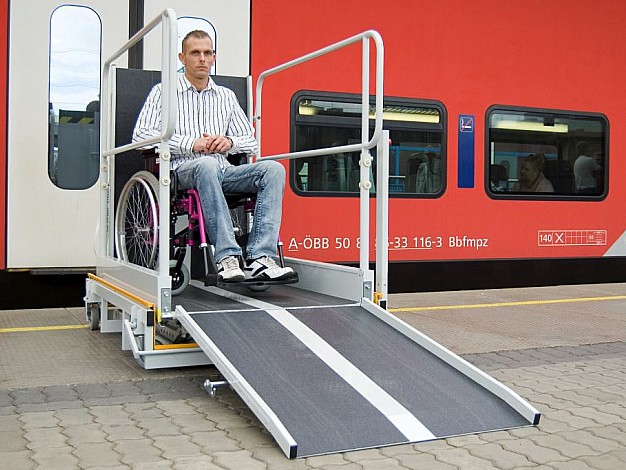

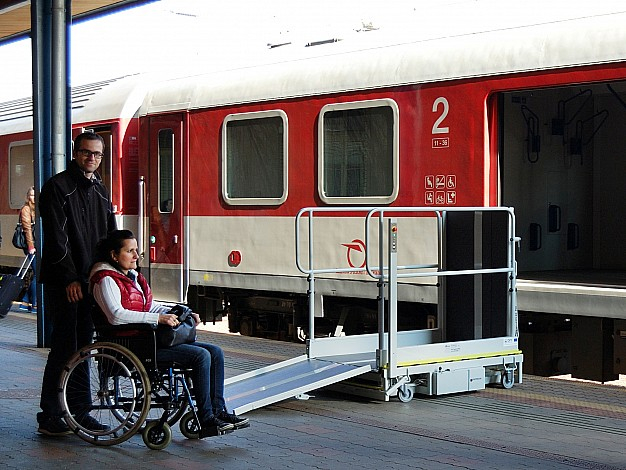

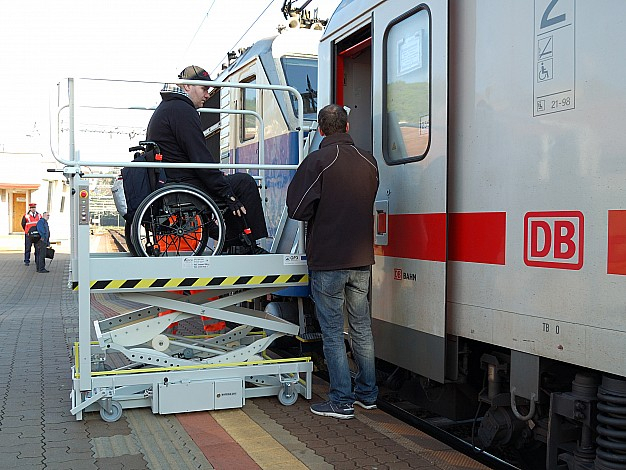

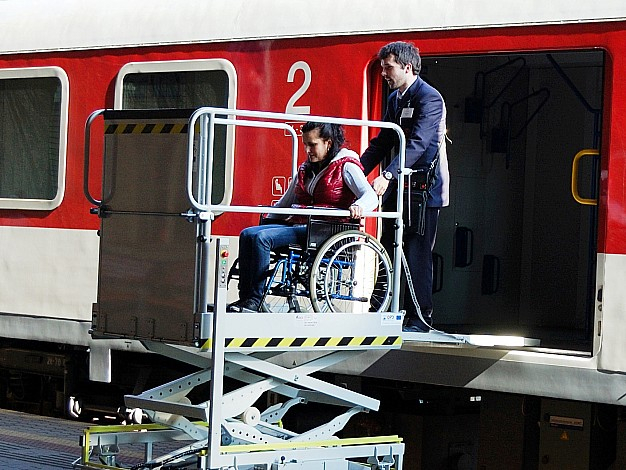

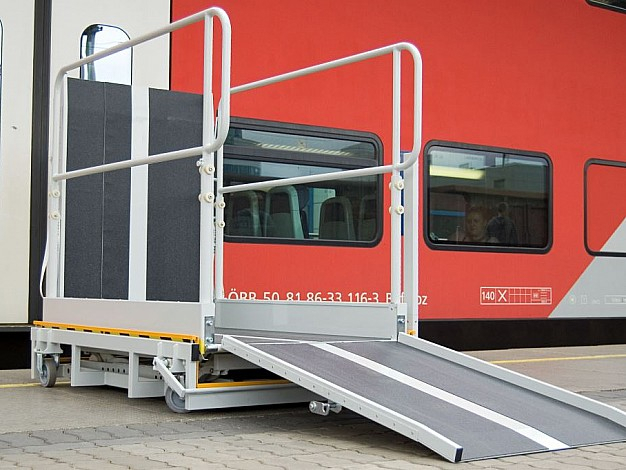

Perfect solution for mobile lifting requirements up to 1400 mm Designed specifically for train access For inside and outside use Available in all RAL colours Low weight allows easy transport on wheels between locations The vertical lifting platform PL1400 is specifically designed for the lifting/lowering of wheelchair drivers to/from train carriages. It is a modern and technically advanced product with easy operation thanks to its design and light construction. The platform is equipped with width adjustable foldable ramps, which size can be adjusted to the width of the particular train carriage doors.

Specifications

Max. lifting height:

1400 mm

Platform height in lowered position:

250 mm

Loading capacity:

300 kg

Lifting speed:

25 mm/s

Surface treatment:

Powder coated in RAL 7035

Optional any RAL colour

Power supply:

24 V DC, from battery pack

Total outside width and length:

1205×1555 mm

Total inside width and length:

860×1400 mm


;
