Alpin

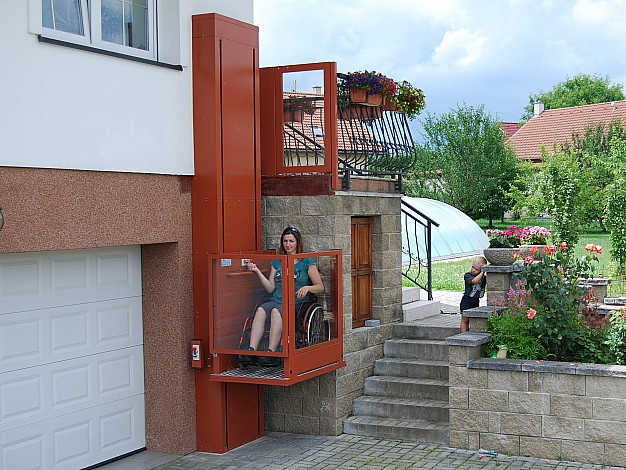

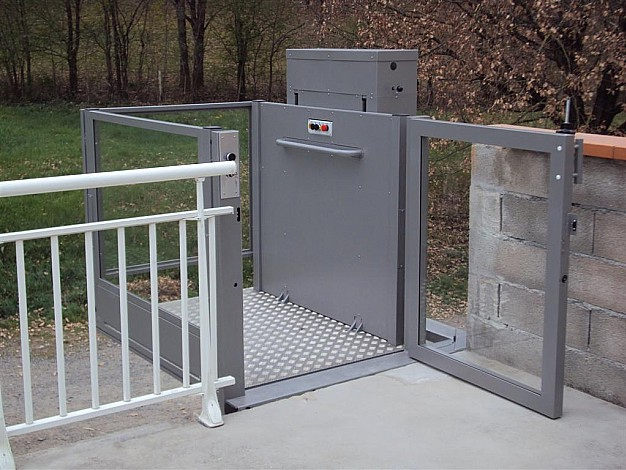

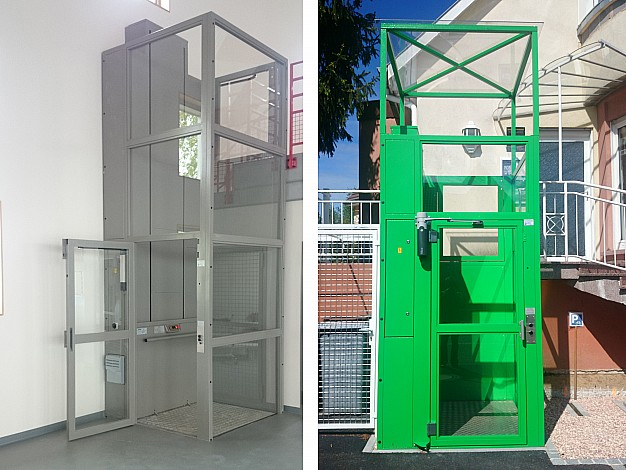

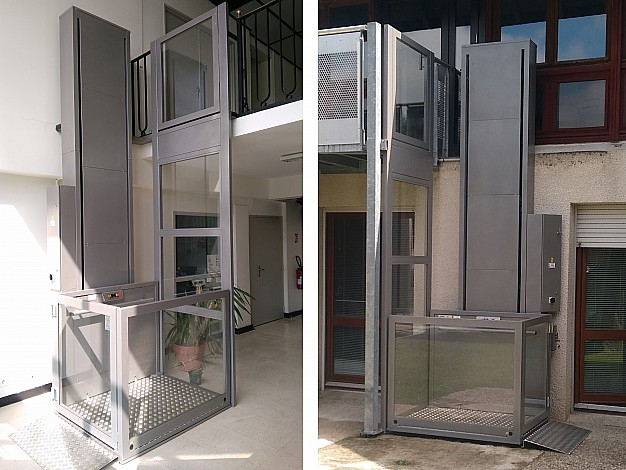

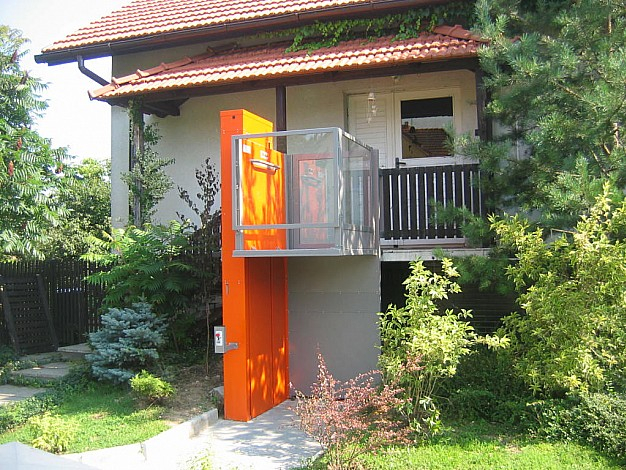

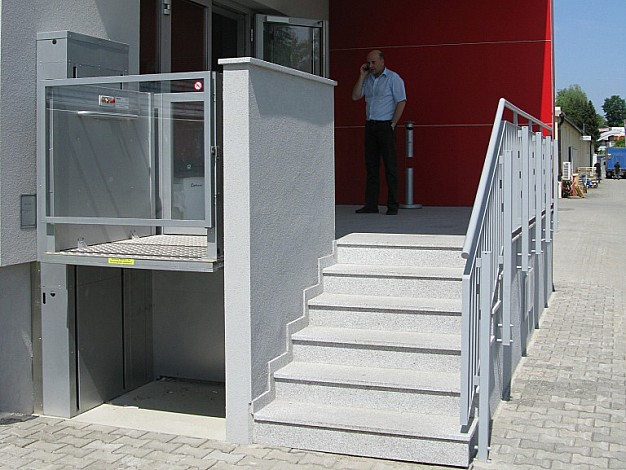

Lifting height up to 4000 mm Plattform sidewalls from tempered safety glass Simple and fast installation Available in any RAL colour It is designed for convenient use by the elderly or handicapped, occupying minimum space without structural modification or additional building work.The Alpin vertical platform lift is an economic and efficient alternative to elevators.

Specifications

Max. lifting height:

4000 mm

Max. loading capacity:

300 kg

Drive system:

Chain drive

Travel speed:

0,11 m/s

Power supply:

3 x 400 V

Optional 1 x 230V

Max. platform sizes:

Length: 1400 mm

Width: 1100 mm

CE & TÜV certified based on the latest European norms
